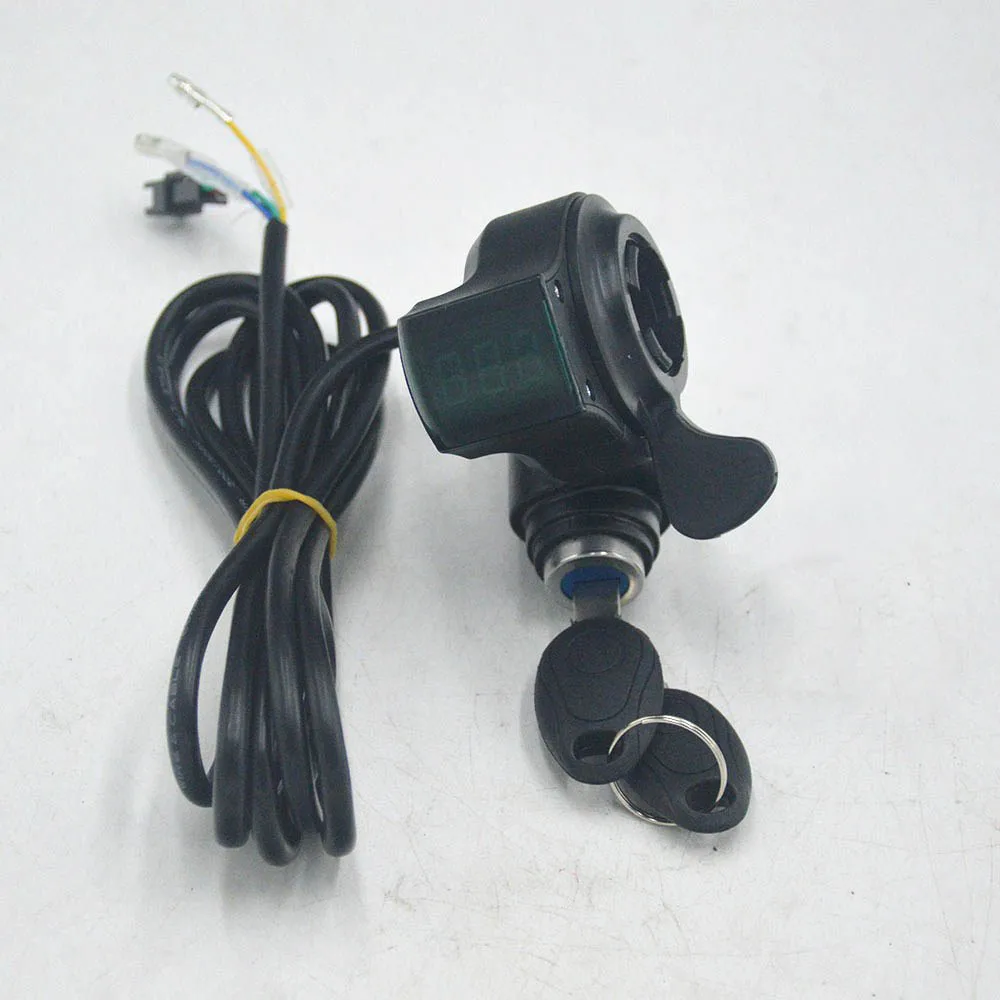

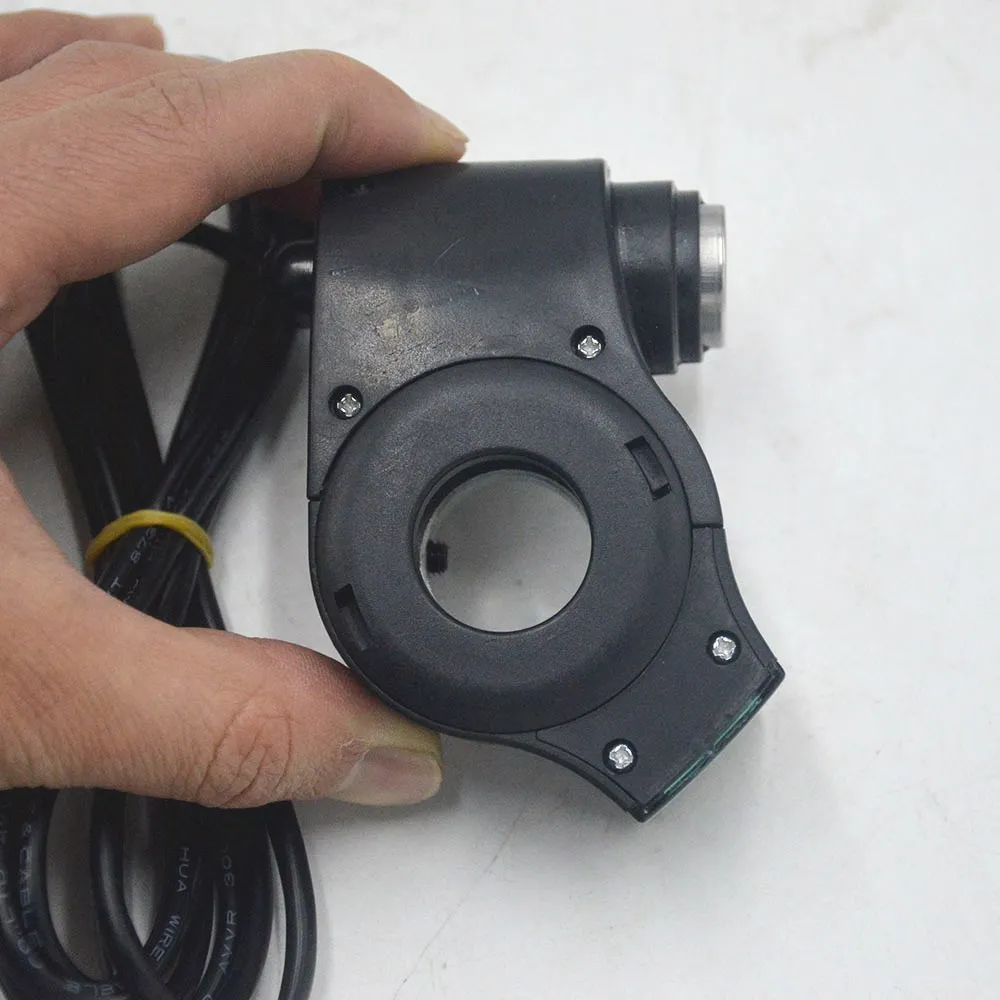

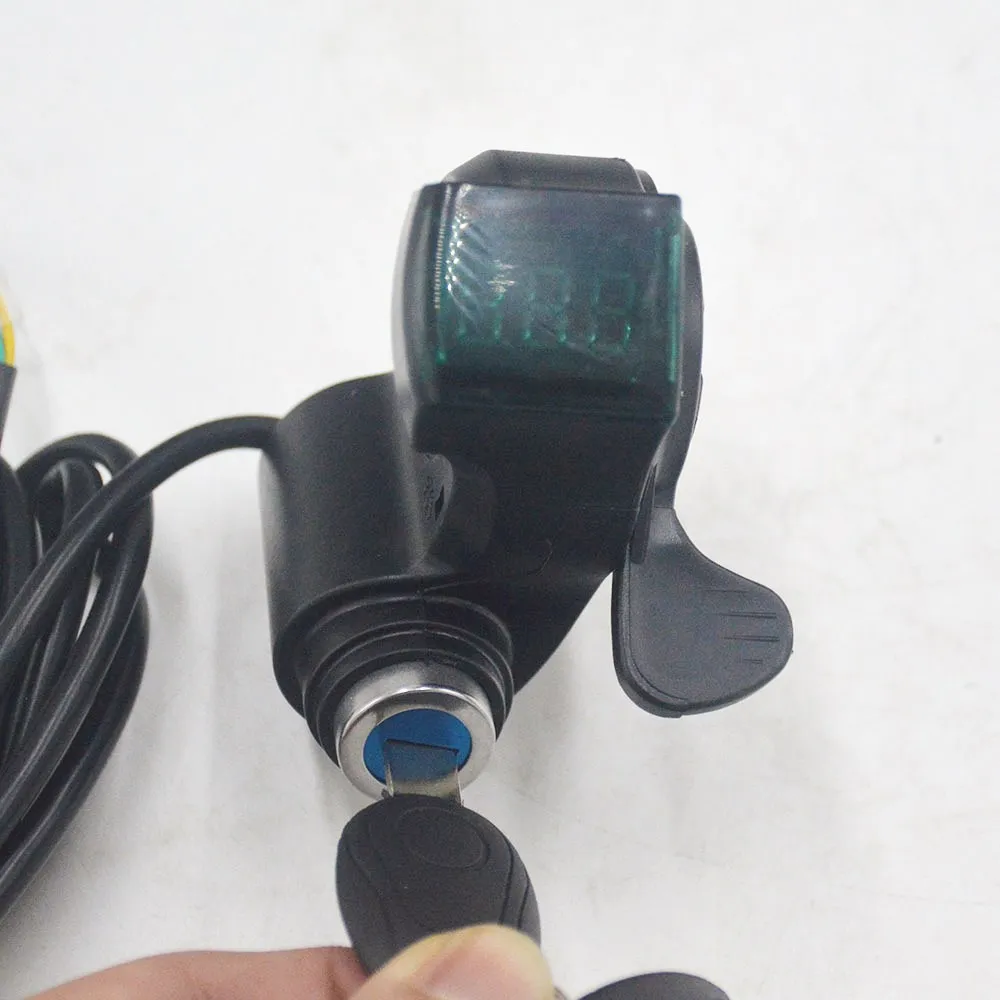

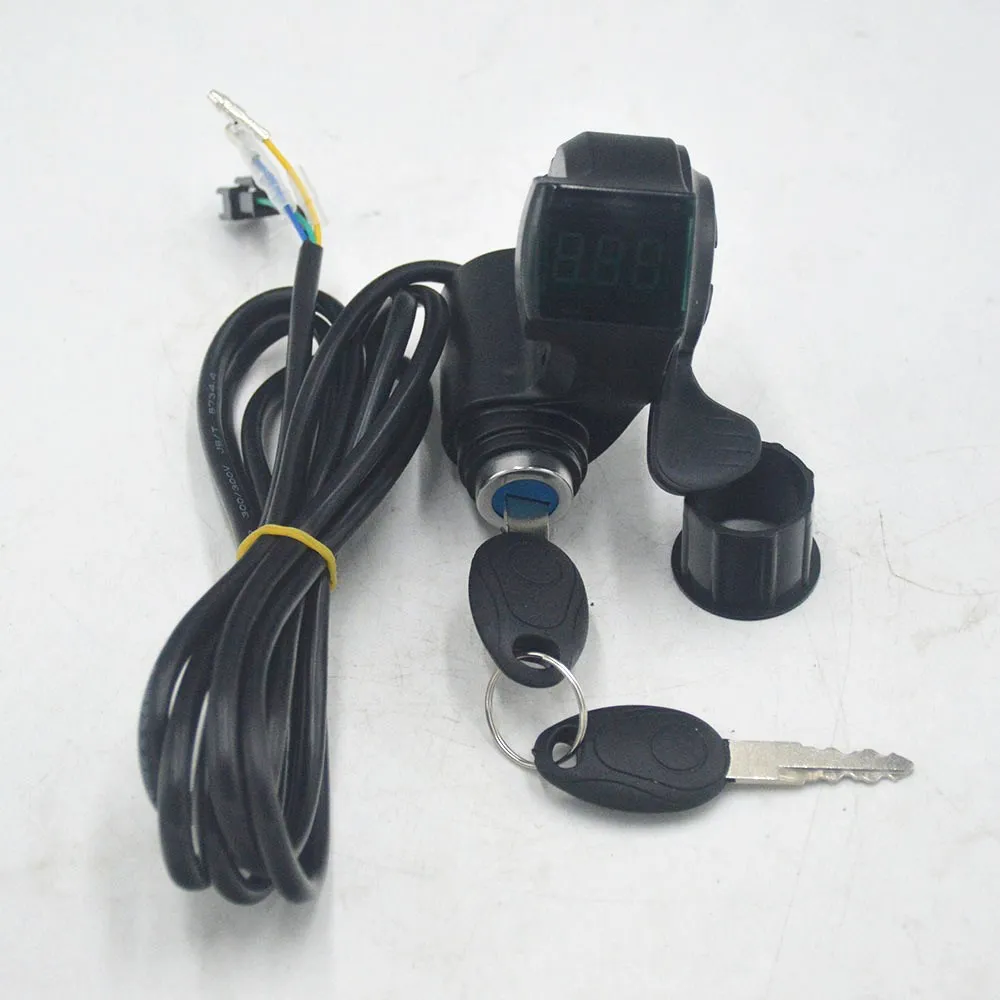

12V/24V/36V/48V/60V/72V Finger Thumb Throttle Electric Scooter with Power Switch LED display Switch Handlebar Grips For Electric Bike Bicycle Accessories Package Contents: 1x Thumb Throttle with Power Switch LCD voltage display Technical Specifications: Color: Black Material: Plastic Length: 200CM Work Voltage: DC 0.8V-42.V Fit for 22mm diameter Handlebar Thumb throttle with red color LCD display and key lock switch. Features and Benefits: 1:Suitable for all of Lithium battery, LiFePo4 battery and Lead acid battery. 2:Battery 12V-84V automatically Identify, Throttle DC 0.8-4.2V 3:Digital voltage display, intuitive and accurate judgment of remaining capacity, mileage. 4:Can indicate vehicle error according to voltage Green is for throttle hall signal, red wire is for throttle +5v, black is negative wire; please connect according to controller function wire, You can not just match same color wire, if wrong connected that will damage your controller and throttle. 4 wires : yellow is for voltage display wire, connect with electric bike power positive. 5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive, 6 wires yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on) 7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear. The above is common wiring way, if need made to order please connect with salesperson. Battery common sense: For this display Battery is measured by voltage. this throttle can work for any electric bike under 84v with lead acid battery, lithium battery, water battery, dry batter and so on. The throttle with automatically identify voltage. Due to the difference of battery material, battery conditions ( new or old, ),controller data , the battery voltage reaction will be different, so the data bellow will have deviation. Customers please check according to your battery to get your battery data. For 12v electric bike, max voltage is about 12.6v, mini is about 9v or higher, For 24 electric bike, max voltage is about 29.4v, mini is about 21v or higher, For 36v electric bike, max voltage is about 42v, mini is about 29v or higher, For 48v electric bike, max voltage is about 54.6v, /58.8v, mini is about 40v or higher, For 60v electric bike, max voltage is about 72v, mini is about 49v or higher, For 72v electric bike, max voltage is about 84v, mini is about 60v or higher, For other electric bike with higher voltage there should be a voltmeter installed. How to maintain the lithium battery: Since lithium battery has different materials (The ternary lithium battery, lithium manganate battery, lithium iron phosphate battery) so we cannot give exact number to measure the balance battery level. Customers please measure the remaining battery level according to your battery indication and max voltage number. Usually please charge when there is 30% left, and please finish charging when reach to 80% of battery. This is best for battery. Any lithium battery has no memory, you can charge anytime, use anytime, that will not influence the life of battery. Please donot overcharge or overdischarge. Please totally charge and discharge for every two month, that will maintain the battery at max. Notice: 1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid. 2. The color may have different as the difference display,pls understand. 3. Please connect according to controller function wire, you can't just match same color wire When installing the throttle, please pay more attention to the line order,do not connected to the wrong line, it will very easy to cause the hall and LED tube burn.
Tuesday, January 28, 2020
24V/36V/48V/60V/72V Finger Thumb Throttle with Battery power LCD display Switch Handlebar Grips for electric bike/scooter/ebike
VNXIFM 2019 Light Blue Bohemian Lace Beach Wedding Dress Long Sleeve V-Neck Boho Bridal Gowns Country Hippie Wedding Dresses
VNXIFM 2019 Bohemian Lace Beach Wedding Dress Long Sleeve V-Neck Boho Bridal Gowns Country Hippie Black Wedding Dresses
Wedding Gown V Neck Off the Shoulder Mermaid Wedding Dress Bride Dress Crystal Wedding Dress vestido de noiva
2019 New Bride Wedding Dress Elegent Champagne Lace Flower Shoulderless Romantic Royal Train Wedding Dress Luxury Vintage
VNXIFM 2019 Vestido De Noiva Lace Boho Wedding Dress V Neck Sleeveless Low V Back Bohemian Open Back Wedding Gwons
Lace Long Sleeve Wedding Gown V Neck Mermaid Wedding Dress Appliques Lace Bride Dress Beads Wedding Dress vestido de noiva
African Black Girl Wedding Dress off the Shoulder V Neck Mermaid Wedding Dress Ruffles Tiered Bride Dress Plus Size Wedding Gown
2019 VNXIFM White Lace Mermaid Wedding Dresses Sexy Fishtail Wedding Gown Bride Dress Vestido De Noiva Robe De Mariage
Spaghetti Straps Wedding Gown V Neck Mermaid Wedding Dress Lace Appliques Bride Dress Beads Wedding Dress vestido de noiva
Luxury off the Shoulder V Neck Mermaid Wedding Dress Appliques Pleat Bride Dress Plus Size Wedding Dress vestido de noiva
LEIYINXIANG 2019 Wedding Dress Bride Gown Vestido De Noiva Sexy A-Line Sweetheart Backless Zipper Appliques Lace Short Princess
TANYA BRIDAL New 2019 Lace Sleeveless Wedding Dresses Cheap Plus Size Dreamy Bridal Gowns Matrimonio da sogno SS052
Loverxu Sexy Backless Long Sleeve A Line Lace Wedding Dresses 2019 Appliques Beaded Sashes Court Train Satin Vintage Bridal Gown
Luxury Arabic Princess Ball Gown Wedding Dresses Satin Lace Applique Wedding Gowns Off the Shoulder Bride Dress vestido de noiva
TANYA BRIDAL Sleeveless Sweetheart Court Train Wedding Dresses 2019 Lace Mermaid Backless Plus Size Dreamy Bridal Gowns SS056
2019 Mermaid Wedding Dresses for Bride Cap Sleeve Beading Applique Backless Bridal Gown Vestido De Noiva Robe De Mariage
Mermaid 2019 Wedding Dresses Long Sleeves Plus Size Bridal Gown Off Shoulder vestido de noiva African Girl gelinlik Black Girl
100% Real Picture Appliques Tulle Mermaid Wedding Dresses Luxury Vestido Noiva Sereia Sexy Robe de Mariee Princesse de Luxe
SHJ822 Boho Wedding Dress 2019 A Line Tulle Long Backless White Beach Wedding Dress Tulle V Neck Pleats Princess Bride Dress
ANTI Vestido de noiva Sexy Long Sleeves Lace Wedding Dress 2019 New Illusion Beading Mermaid Robe de mariee Custom Bride Dress
SHJ835 Hot Sale Simple Backless Wedding Dress Skirt New Fashion Spaghetti Strap Boho Wedding Dresses 2018 Custom Made
2019 Ball Gown Wedding Dresses 2019 Sweetheart Off Shoulder Pink Flower Bridal Gown Backless Sweep Train Bride Dress Plus Size
Luxury Mermaid Sleeveless Wedding Dresses 2019 South African Black Girl Country Garden Bride Bridal Gowns Plus Size Custom Made
Real Brides Simple V-neck Champagne Crystal Beach Wedding Gowns 2019 Plus Size Lace Appliques Pearls Boho Wedding Dress RB97
VNXIFM 2019 Vintage Wedding Dress Halter Sleeveless Applique Beading Lace Wedding Gowns A-line Long Bride Vestido De Novia
VNXIFM 2019 real photo Sexy chest Mermaid wedding dress Cap sleeves lace Wedding Gown Vestido de noiva V Back Wedding Gwons
Ashley Carol Vintage A-Line Wedding Dress 2019 Elegant Scoop Short Sleeve Abiye Princess Bride Gown Customized Vestido De Noiva
Brand Name
MEIANDIAN
Type
Throttle
Voltage
12V/24V/36V/48V/60V/72V
Material
Plastic
Feature
22mm diameter Handlebar
Line length
200CM
USE
electric bicycle,scooter,ebike
